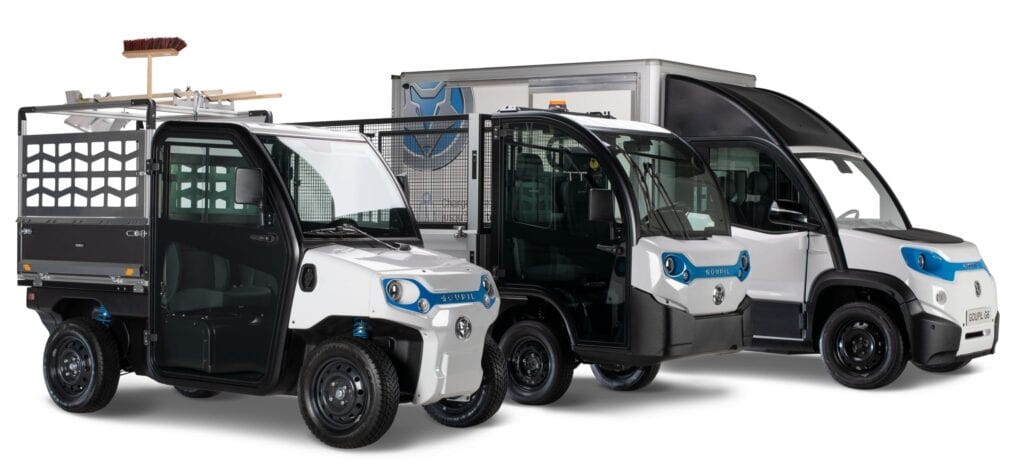

The new models from Goupil: G2, G4 & G6
Electric powered utility vehicles
Goupil Industries has been engaged in the development and production of electric utility vehicles since 1996. The product range includes emission free electric transporters with a compact design in more than 25 different configurations. Goupil offers tailored solutions for industrial operations, municipal services, trade and crafts or operators of larger properties.
Download PDF
Would you like to rent, purchase or have a machine repaired and require a non binding offer?

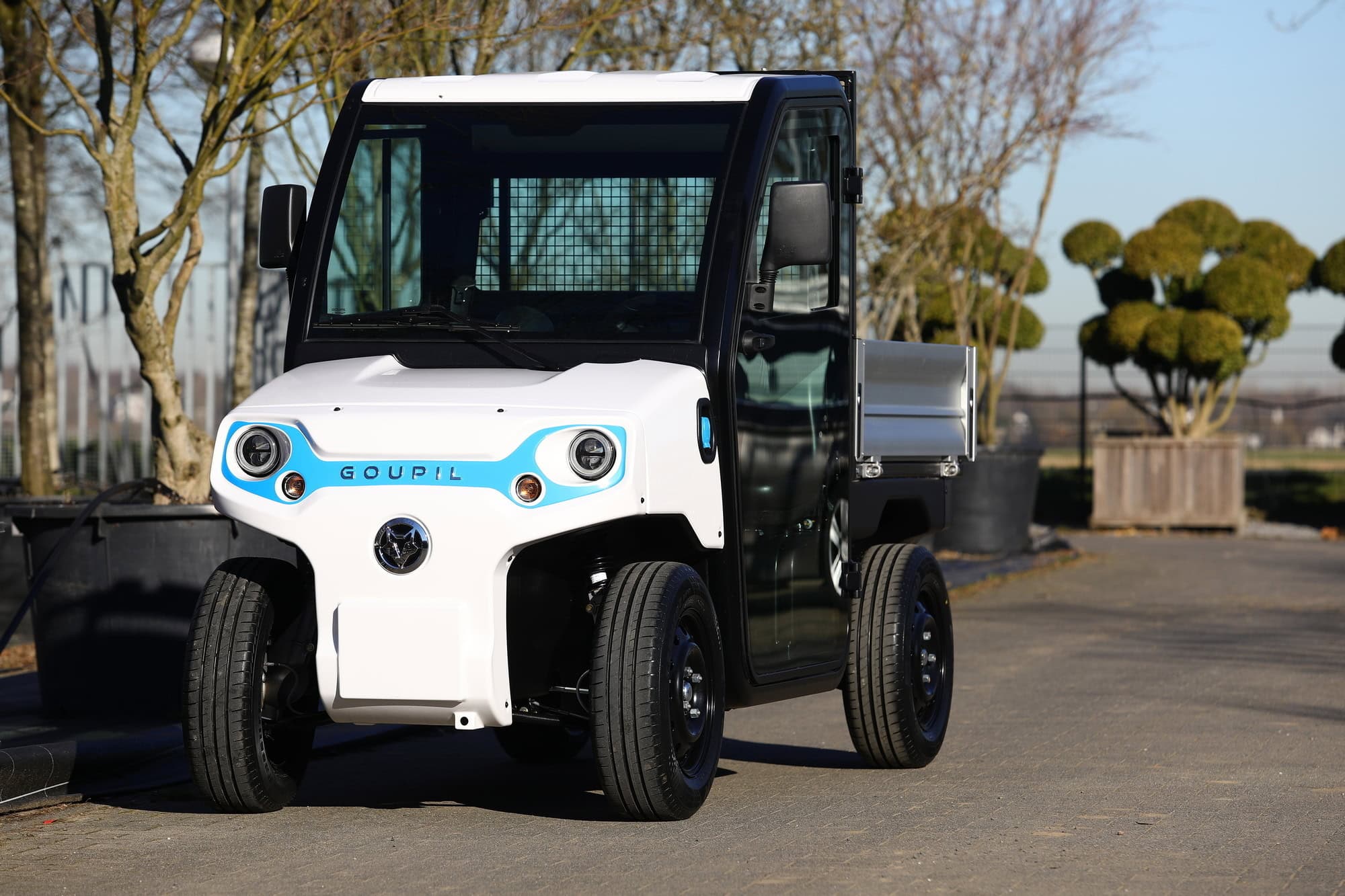

Goupil G2
“The new small one” sets standards in its category.
- Range up to 100 km (L7e CU test)
- Practical range 40 – 60 km
- Payload up to 500 kg
- Maximum speed 30 km h (lithium batteries)
- Vehicle width 1,10 m
Standard equipment
Homologation I cabin seats *
- Road approval with and without doors L7e CU
- Number of seats (seat belts as standard) 2
General features *
- Chassis steel S355 with corrosion protection treatment
- Aluminum cabin with rear window and heated windshield as standard
- Glass doors with opposite opening + side mirrors
- Platform removable wood anti slip and rot proof
Standard *
- 3 point seat belts
- Indicators
- Windscreen wiper 2 speed
- Heated windshield
- LED headlights
- Cup holder
- 12 V and USB socket
- Rearview mirror
- Adjustable seats
Options *
- Trailer coupling
- Bluetooth speaker
- Roof bar with customizable options warning triangle with double rotating beacon (height of warning triangle raised 490 mm folded 130 mm)
- Electric blower 900 W
- Driving alarm pedestrian forward reverse
- Reflective strips class 2
- Rotating warning light on side bracket
- Jack and wheel wrench
Performance/Efficiency
Performance *
- Max. reelle Geschwindigkeit 30 km/Std
- Max. Neigung leer 25 %
- Max. Neigung beladen 18 %
- Max. Neigung beladen mit Anhänger 12 %
Weight *
- Unladen weight (Batt. 5.2 Li. + doors + platform + trailer coupling bracket) 466 kg
- Permissible total weight 1.100 kg
- Permissible total weight in combination with trailer 1.333 kg
- Gross payload with lithium batteries from 322 to 567 kg
- Gross payload with lead acid batteries from 146 to 360 kg
- Max. towing force (braked trailer or unbraked trailer) 233 kg
Dimensions*
- Overall length x cabin width x overall height 3.280 x 1.105 x 1.785 mm
- Wheelbase 2.215 mm
- Track width front/rear 975 mm/985 mm
- Ground clearance 212 mm
- Turning radius (bumper), turning radius (wheels) 4.400 mm/4.370 mm
- Wheelbase 2.215 mm
Range of applications
Small but powerful
- Mobile in narrow aisles
- Also suitable for use in enclosed spaces
- High maneuverability thanks to narrow design
- Extremely small turning radius
- Surprisingly high payload
Full of smart ideas
- Fast and easy entry into the cabin for stop and go use
- Clear visibility to the front and sides
- Ergonomic glass door opening forward so you always see where you step
- Optimized dashboard
- Ideal loading height for easy loading and unloading
Innovative lithium battery
- 0 € maintenance costs
- Full or partial charging always possible
- Increased autonomy and payload compared to lead traction batteries
- Charging possible at any 230 V standard socket

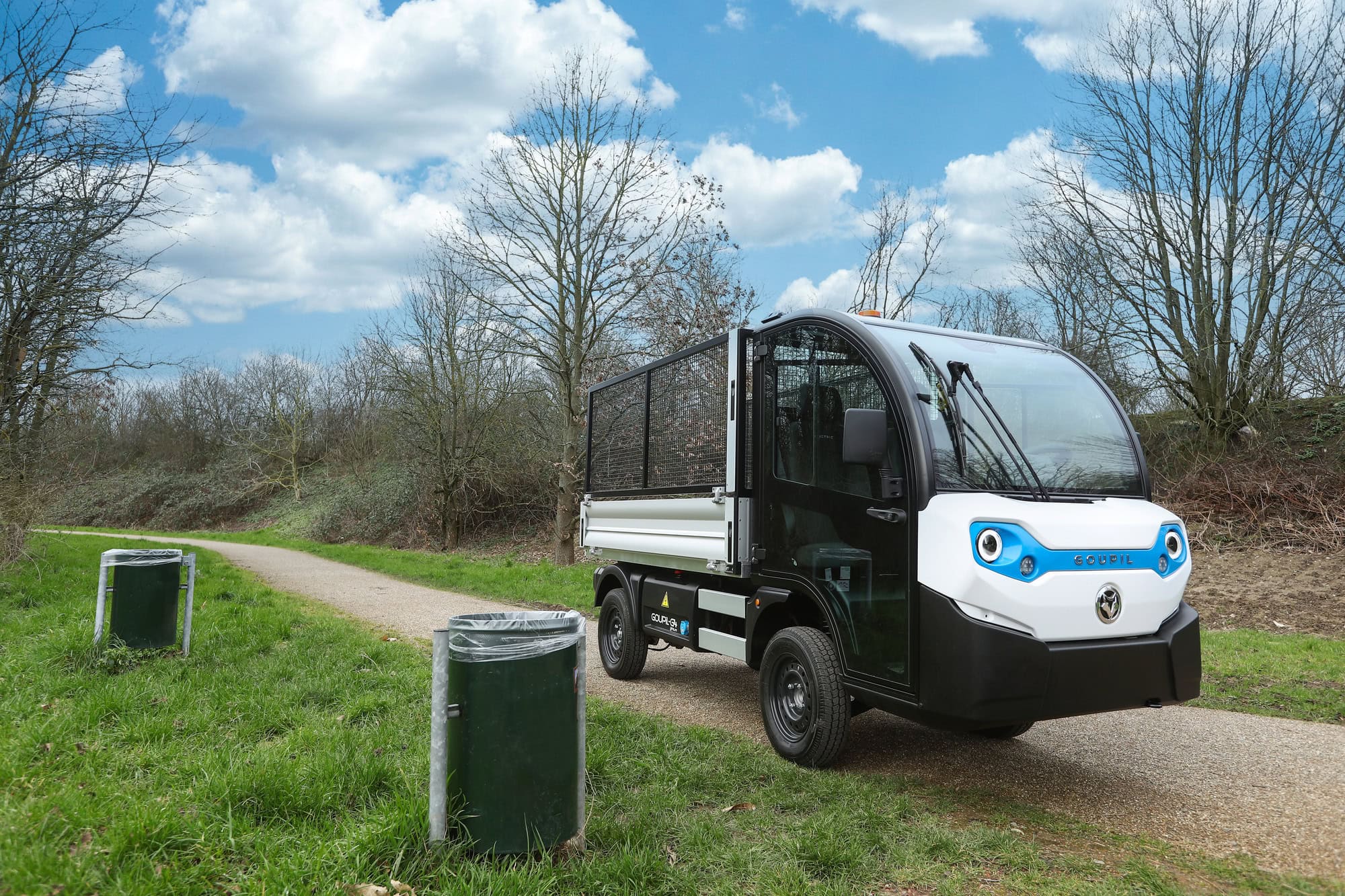

Goupil G4
The new benchmark in the utility vehicle sector
- Max. range according to UN ECE R101 measurement up to 120 km
- Practical range 70 – 90 km
- Payload up to 1200 kg
- Maximum speed 50 km h
- Vehicle width 1,32 m
Standard equipment
Safety
- Safety contact switch
- Electric proportional brake
- 3 point seat belt
- Emergency stop switch
- 2 selectable driving modes fast slow
(high low)
Comfort and usability
- Adjustable comfort seats with headrest
- 2 person cabin
- Heated windshield with defrost function
- Windscreen wiper and washer system
- Rear window
- LED daytime running lights
- LCD color display
- Rear fog light and reverse light
- Charging plug
- Road approval according to StVZO
Range of applications
- Silent use in front of retirement homes or in noise sensitive areas
- Emission free use in environmental zones and spa facilities
- Robust payload up to 1200 kg for industrial applications
- Maneuverable 3,90 m turning radius for use in cemeteries or municipal facilities
- Spacious 2 person cabin for municipal services no need for an escort vehicle
- Promotional effective ideal for a green image of a city or a company
- Fast maximum speed up to 50 km h suitable for urban traffic
- Extended range rechargeable at any 230 V household socket
Goupil G4 with crane superstructure
Compact, powerful and emission free the Goupil G4 with crane superstructure takes your logistics to the next level. Equipped with cabin, comfort seats, heated windshield and full lighting, the G4 is a well thought out all round solution.
Where does the Goupil G4 fit into your operation? Whether in the warehouse, on the construction site or in municipal applications it ensures efficiency, sustainability and maximum flexibility.
- Load capacity 1200 kg
- Loading area 2140 x 1215 mm
- Dimensions 3582 x 1305 mm
- Electric drive 48V battery (new) with 10 kW motor power
Crane superstructure
- Maxilift 110S.2 ERS 12V
- Load moment 10 kNm
- Equipment included
- 4 way control valve block
- Slew limitation with proximity sensors
- Outriggers with manual crank operation (lift max. 964 mm)
- Load indicator ECI

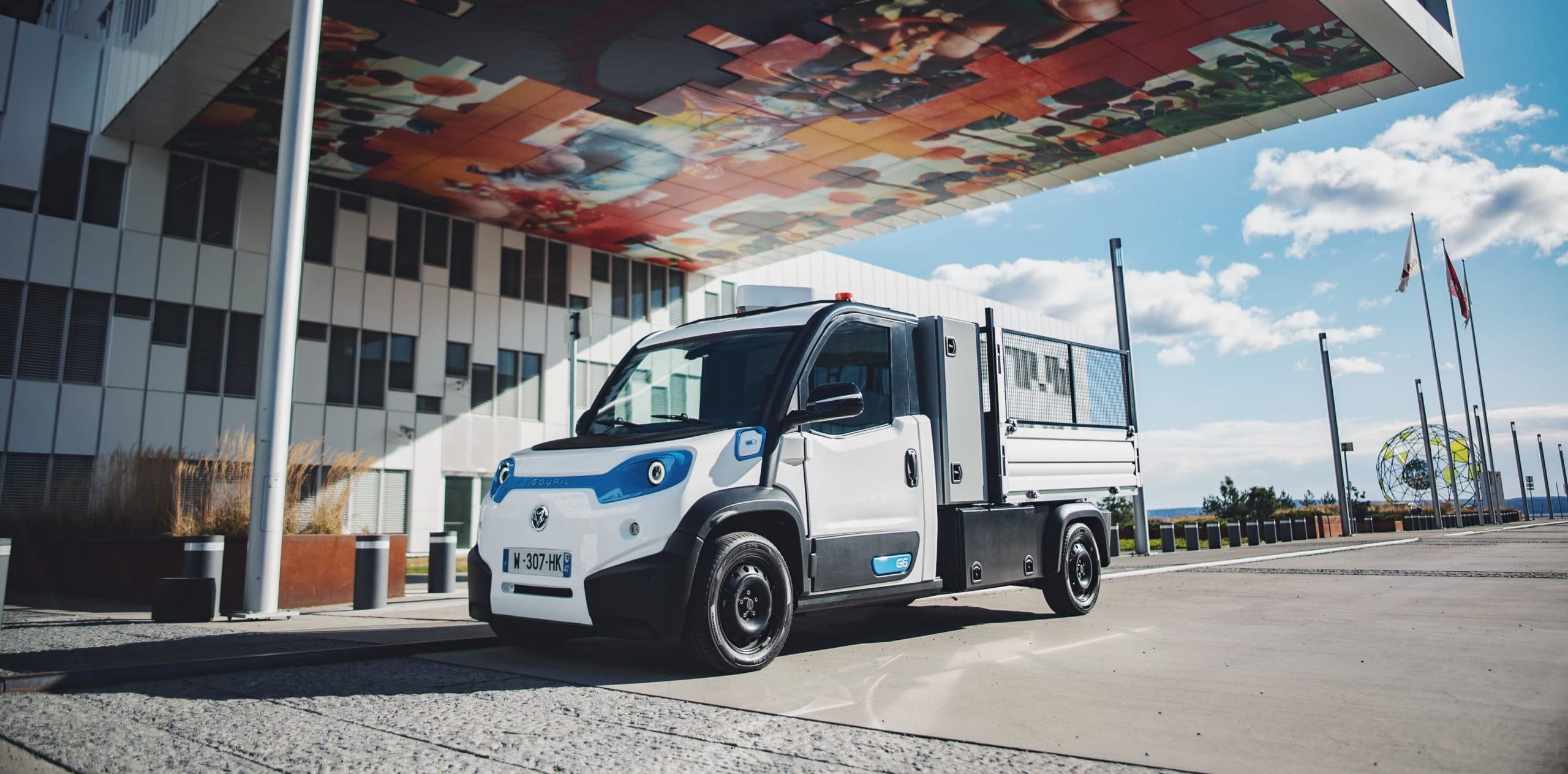

Goupil G6
The new dimension of 100 percent electric utility vehicles
The fully electric all round performer for trade, crafts and business.
- Max. range according to UN ECE R101 measurement up to 110 km
- Payload up to 1000 kg
- Maximum speed 80 km h
- Load volume 9 cubic meters

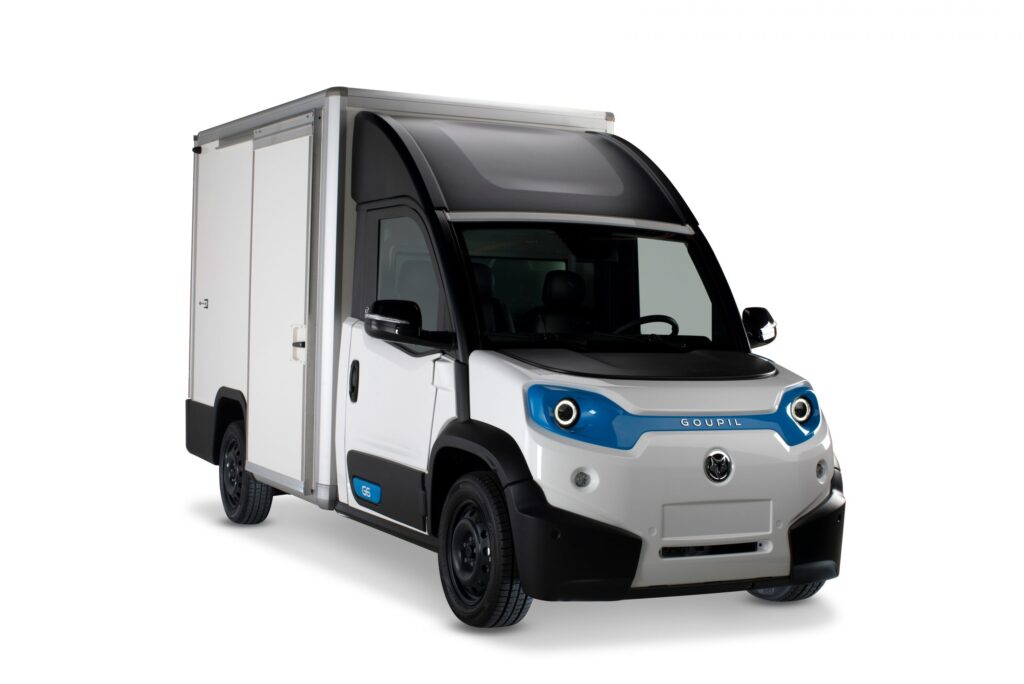

The Van
- Volume 9 m3
- Height approx. 2 m
- Gross payload 800 kg
- Loading height rear and side 40 cm
- Side sliding door
- Rear wing doors with 70° opening
- Option radar and rear view camera with display projection
The tipper platform
- Including aluminum side panels and tool holder on the rear cabin wall
- Loading height 92,5 cm
- Payload 900 kg (without box behind the cabin)
- Operation of special functions via control buttons on the dashboard or a remote control
Driving performance and performance
- Maximum speed 80 km h
- Maximum gradeability empty 30 %
- Maximum gradeability loaded (permissible total weight) 20 %
- In trailer operation loaded (permissible total weight ready to drive) 12 %
Standard equipment
High resolution LCD color display
Number of seats 3 (driver + 2 passengers)
Charging cable type 2 mode 2
Light and rain sensor automatic activation of headlights and windscreen wipers
LED lights front (height adjustable) and rear
Storage compartment under the passenger bench seat
Heater 5000 W 3 temperature and ventilation levels (7 outlets)
3 level energy recovery brake + snow mode (recuperation deactivated)
Storage compartment (DIN A3 format) and lockable glove compartment
Power steering
Adjustable multifunction steering wheel (angle adjustment for an ideal driving position)
Electric windows
Electrically heated adjustable and foldable exterior mirrors
AVAS system for safety of people in the driving environment
Easy care artificial leather seats
12 V socket
